STS400 |
STS800 |
STS1600 |
| CPU |
MPC 855T 32-bit
RISC CPU, 50Mhz |
| DRAM |
64 MB |
| 플래시 메모리 |
8 MB ( 1 MB of
user programmable space ) |
시리얼
인터페이스 |
4-port
RJ45 connector |
8-port
RJ45 connector |
16-port
RJ45 connector |
| Serial speeds 75bps to 230Kbps |
| Flow Control: Hardware, Software |
Signals:
- RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND
|
네트워크
인터페이스 |
10/100Base
Ethernet with RJ45 Ethernet connector |
| Supports
static and dynamic IP address |
| 네트워크 프로토콜 |
ARP, IP/ICMP, DNS, Dynamic DNS
SMTP with/without Authentication, pop-before SMTP,
DHCP client, NTP, PPPoE
TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217
SSH v1 & v2,Telnet
HTTP, HTTPS, SNMP v1 & v2 |
Serial Port Access
protocol :
Telnet, TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217 |
| 임베디드 리눅스 |
File System
:
- CRAMFS, JFFS2, NFS, EXT2, VFAT/FAT
Utilities :
- Bash : OS shell command
- busybox : Linux normal command utility collection
- shadow : User/Password management utility
- telnet : Telnet client program
- ftp : FTP client program
- SCP : Secure file transfer client program
- iptables : Firewall service manager
Utilities only for Super Series :
- ss.apply, ss.filter, ss.portmenu, ss.channel, ss.logger, ss.save,
ss.configuration_manager, ss.port, ss.tcp, ss.modemmenu, ss.server_lock,
ss.connect, ss.nfs_mount, ss.edit, ss.port_factory_default, port[number]_reset
Daemon :
- snmpd : snmpd agent daemon
- telnetd : Telnet server daemon
- inetd : TCP server manager program
- goahead : Web server daemon
- sshd : Secure shell server
Tool Chain :
- Gcc ( V2.95.3 ) : C/C++ PC Cross Compiler
- GDB ( V5.0.0 ) : Source Level Debug Server
- Glibc ( V2.2.3 ) : POSIX standard
|
| PCMCIA |
|
| 보안 |
User ID & Password |
| HTTPS |
| Secure
terminal interface: SSH |
| Data
Encryption: SSLv2/v3, TLS v1, 3DES and RC4 |
| IP
address filtering |
| SCP |
| 모델 애뮬레이션 |
Full
support for AT commands |
| 관리 |
- Web
- Telnet/SSH
- Serial console port
- HelloDevice Manager
- O/S support: Windows 98/ME/NT/2000/XP
|
System log and statistics:
- System logging to SYSLOG/NFS server or CF card
- Logging by email support
- Full-featured system status display support
|
Firmware:
- Stored in Flash memory and Downloadable via serial console or telnet
or web
|
| LED |
- Power
- Ready
- 10/100 Base Link, Act
- Serial Rx, Tx for each port
|
| 파워 |
5VDC1.5A @ 5V |
110~250 VAC, 50/60Hz 43W |
| 동작 환경 |
Operating
temperature: 0'C to 50'C |
| Storage
temperature: -20'C to 66'C |
| Humidity: 90% Non-condensing |
| 외형 요소 |
245x 153x 30 (mm)
9.6 x 6 x 1.2 (in.) |
432 x 193 x 44.5 (mm)
17 x 7.6 x 1.75 ( in.) |
| Weight: 1.5kg |
Weight: 2.8kg |
| MTBF |
|
17.08 Years |
8.93 Years |
| 인증 |
FCC Part 15 Subpart B, Class A
EN61000-3-2, EN61000-3-3
EN60950-1
EN55022
EN55024
MIC |
| 보증 기간 |
5-year
Limited Warranty |

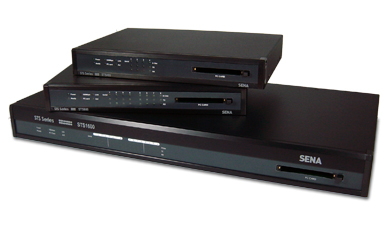

STS400/800/1600
