PS110 |
PS410 |
PS810 |
시리얼
인터페이스 |
Serial speeds 75bps to 230kbps |
| DB9 connector |
| Flow Control: Hardware, Software |
Signals:
- RS232: Rx, Tx, RTS, CTS, DSR, DTR, DCD, GND
- RS422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-
- RS485: 2/4-wire
|
| Surge protector equipped for each serial port |
네트워크
인터페이스 |
10/100 Base-T Ethernet with RJ45 Ethernet connector |
| Supports static and dynamic IP address |
| 프로토콜 |
ARP, IP/ICMP, TCP, UDP,
Telnet/SSH
DNS, Dynamic DNS,HTTP, SMTP, DHCP,
SNMP v1 & v2, SSL v3 |
Serial Port Access protocol :
Telnet, TCP, UDP, SSL v3, RFC-2217 |
| 이더넷 모뎀 |
Full AT command set support |
| 보안 |
SSH, SSL, IP address filtering, HTTPS |
| 관리 |
- Web
- Console port
- Telnet/SSH
- HelloDevice ManagerTM software
- O/S support: Windows 98/ME/NT/2000/XP
|
| 로깅 |
Versatile system logging support for all system events |
| Serial port data logging |
| 펌웨어 |
Upgrade using console, telnet/SSH and web |
| LED |
Power, Link, Serial Rx/Tx for each serial port |
Power, Link, Act, Serial Rx/Tx for each serial port |
Power, Ready, Link, Act, Serial Rx/Tx for each serial port |
| 파워 |
9~30VDC, 0.35A @ 9VDC |
9~30VDC, 0.4A @ 9VDC |
100~240VAC, 50/60Hz, 0.24A |
| 동작 환경 |
Operating temperature: 0°C to 50°C |
| Storage temperature: -20°C to 66°C |
| Humidity: 90% Non-condensing |
| 외형 요소 |
114 x 82 x 26 (mm)
4.48 x 3.22 x 1.02 ( in.)
300g |
119 x 227 x 27 (mm)
4.68 x 8.94 x 1.06 ( in.)
750g |
119x 437 x 44 (mm)
4.69 x 17.20 x 1.73 ( in.)
1.56kg |
| MTBF |
57.59 Years |
30.89 Years |
18.42 Years |
| 인증 |
FCC Part 15 Subpart B, Class A
EN61000-3-2, EN61000-3-3
EN60950-1
EN55022
EN55024
MIC |
| 보증 기간 |
5-year limited warranty |

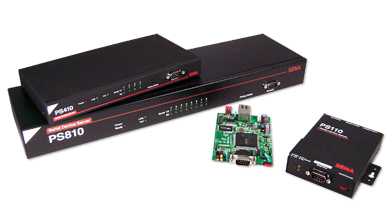

PS110/110B/410/810
