Serial Label

(HelloDevice 13xx or Ethernet-serial devices only)

Displays received text data

When a serial data has been received, this component will display text that was retrieved from received data. Check the serial protocol page and value expression.

Note : When the connected device is HD1100 or HD1200, this component will not have any effects any more.

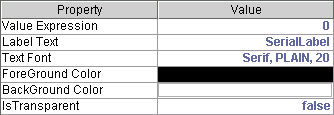

Properties

Value Expression : the symbol of matching text (value of VA in serial protocol)
Label Text : the initial text of this label
Text Font : font, style and size of text
ForeGround Color: the color of this component's text
BackGround Color: the color of this component's background
IsTransparent : is the background of this component transparent?
