Sample HD13xx

Bitwise protocol configuration

Note :
Use direct-echo RS232 adaptor for instance performance.
Also, refer to the bitwise serial protocol defining section.

Bit-level protocol configuration is possible by choosing 'bit (byte)' type in [FX] category field in serial protocol configuration dialog.

Bit configuration of 's0' (or 'r0') protocol is

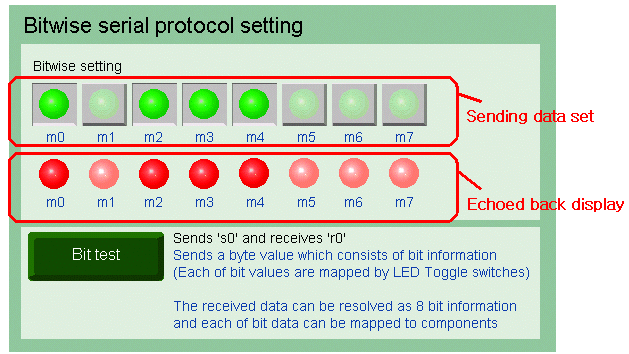

The 'Bit test' button sends 's0' and expects to receive 'r0' which is same with 's0' in protocol configuration. To emulate this 'echo' situation, it would be better to use direct-echo RS232 adaptor. If the deployed applet or application does not receive 'r0', the red LEDs will not be updated.
